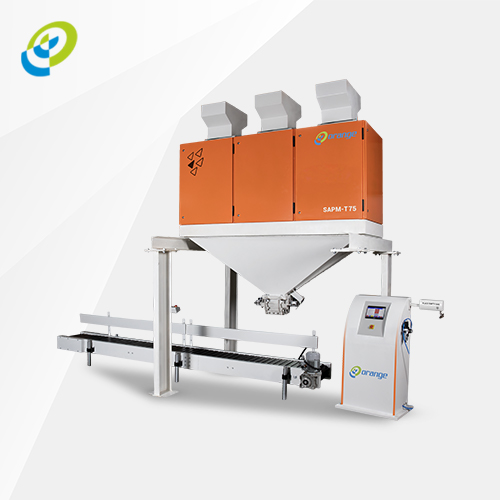

Triple Head - SAPM - T75HC

Triple Head - SAPM - T75HC

Orange has made packing machines to give the fastest efficient way of packing. SAPM-T75HC provides the best output tonnage. Using three individual weighing bin mechanisms the bag filling is done 75% faster than the usual single-head packing machine. SAPM-T75HC uses an advanced imported load cell that only requires a few calibrations in its entire lifetime. SAPM-T75HC is more efficient for customers who have large loads that had to be packed, stitched and loaded in a short duration of time.

Supported Commodities

Rice Packing

Rice Packing

Models & Technical Specification

  Model Triple Head
Functional Parameters Filling Range (Kg) 5 ~ 75 kg
Bag Range (Kg) 5 10 25 50 75
Filling speed (~) (Bags/Hr) 950 720 650 420 340
Filling speed (~) (Tons/Hr) 4.8 7.2 16.2 21 26.5
Accuracy (~) (+/-) grams 20 20 30 40 60
Electrical Operating Voltage/ Frequency (V/Hz) 230V AC / 50hz (440V AC If Stitching & Conveyor is used)
Power consumption weighing and filling (KW) 0.75
Power consumption Conveyor (~) ( ) (KW) 0.75
Power consumption Sticher (~) (Optional) (KW) 0.35
Pneumatic Air pressure required (Kg/cm2) 6 ~ 7.5
Air volume required (CFM) <5
Mechanical Dimension - Length (mm/ft) L - 2315 mm / 7.6 ft
Dimension - Width (mm/ft) B - 890 mm / 2.9 ft
Dimension - Height (mm/ft) H - 2220 mm / 7.2 ft
Mounting On Hopper Structure by customer
Weight (~) (Kg) 400
Related Products

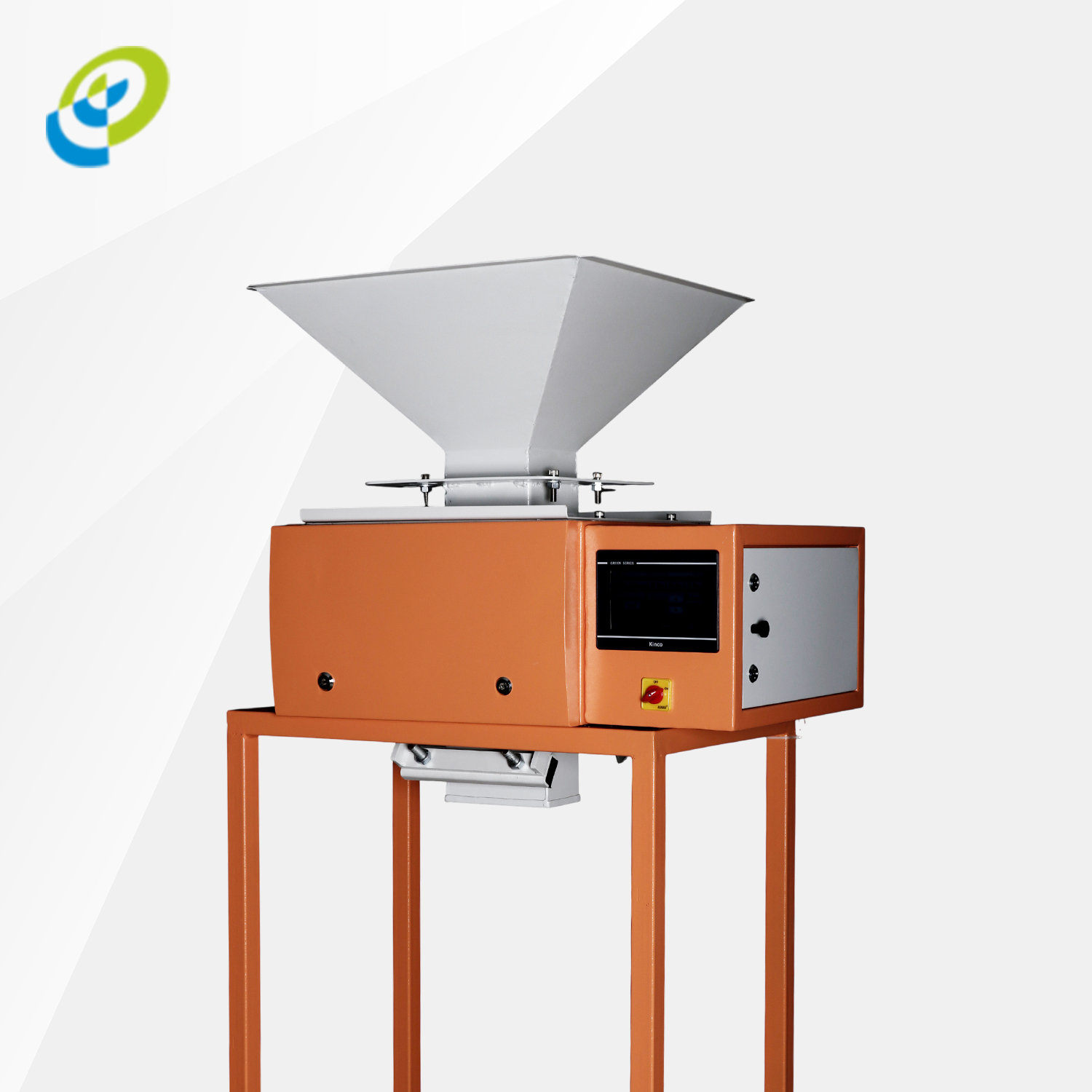

Single Head - SAPM - S75NC
Single Head - SAPM - S75NC

Orange gives you a new efficient packing solution with SAPM S75. Due to its small form factor, it becomes more convenient to fit directly under the hopper and does not occupy more room space. It is height is just 1 foot and 9 inches. So the user doesn't have to keep a separate hopper for the packing machine. It measures weight with the bag, hence the user can avoid the manual bag’s weight entry.

View More
Double Head - SAPM - D75NC
Double Head - SAPM - D75NC

Orange Brings you an accurate, user-friendly, high-speed packing machine for the industry. SAPM-D75NC uses state art technology in every component of the packing machine. SAPM-D75NC used the imported Load cell which needs less calibration in its life span. The acceptance level of weighing can be calibrated by the user itself. By understanding the requirement of users we have introduced many interesting features in SAPM-D75NC.

View More
